Custom Amp 1×12

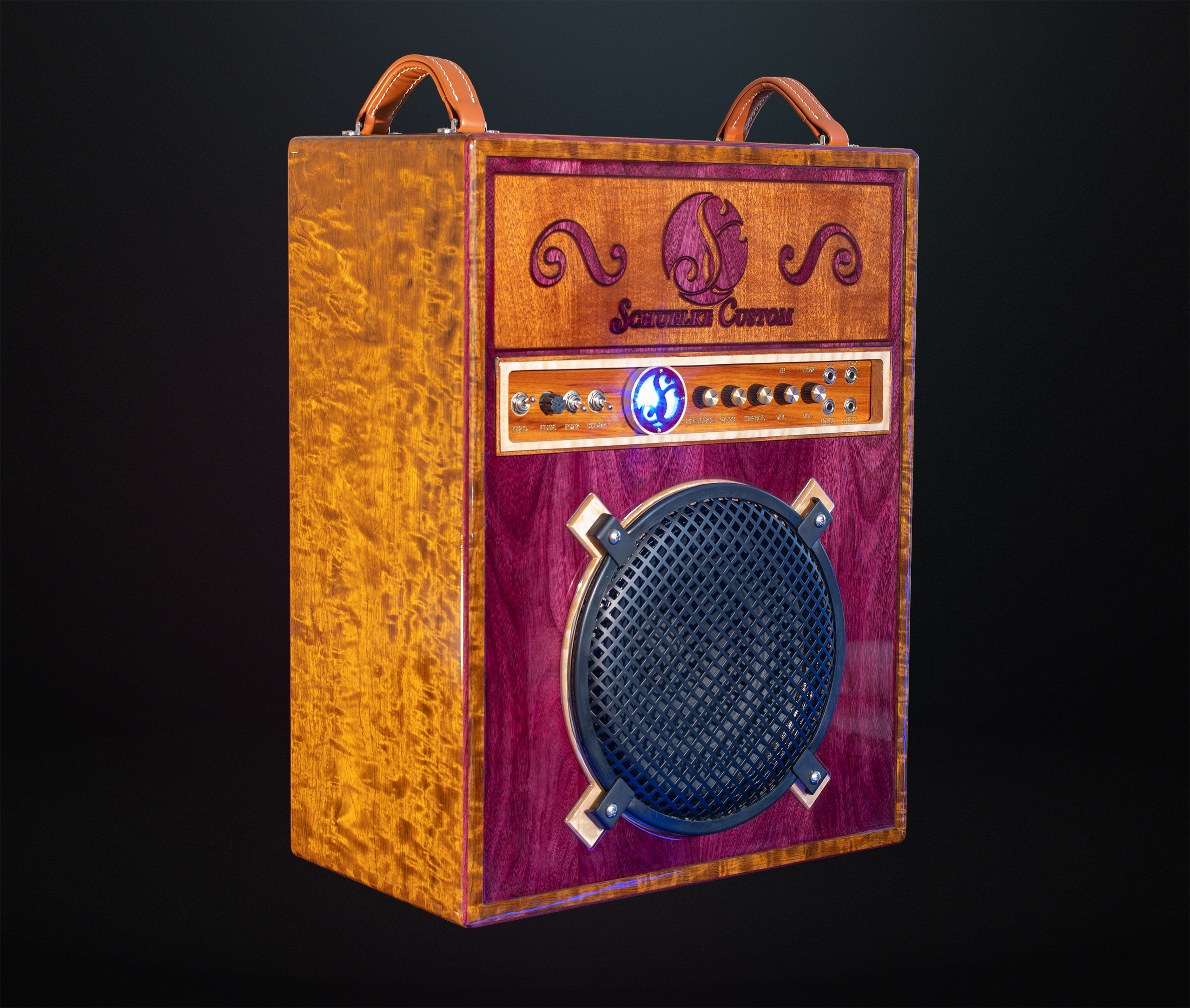

Custom Built 1×12 Combo Amp
- Quilted Spanish Cedar and domestic Cherry laminate for cabinet construction
- trimmed with 8th inch Purpleheart binding
- Front baffle consists of a book matched Purple heart and Genuine Mahogany laminate
- Front speaker baffle also features a Figured Maple speaker mount accent/inlay
- Control panel boasts a Figured Maple boarder

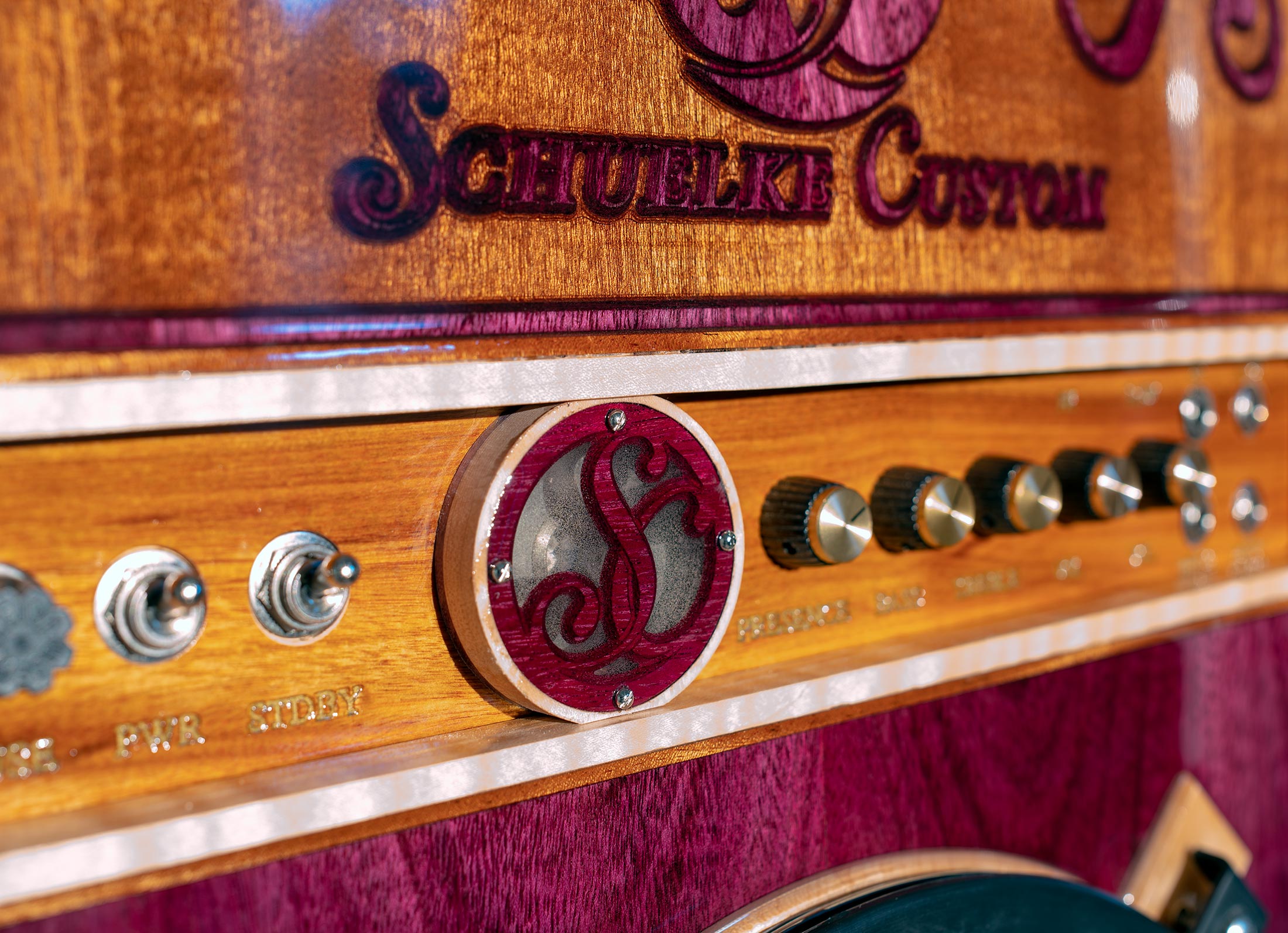

- Control panel is made from Canary wood with engraved text for each control panel feature
- Schuelke Custom, bright blue LED illuminated logo carved from Purpleheart
- Top rear panel cover for amplifier chassis custom carved venting in Purpleheart complimented by African Mahogany boarder
- Noctua silent fan powered by either 9 VDC or 12 VDC panel mount power supply
- provides constant air flow to reduce heat from vacuum tubes
- Lower rear panel speaker cabinet panel made from book matched Domestic Cherry
- Symmetric venting carved into wood and reinforced by plated Zinc metal vent
- Performance based grounding scheme to eliminate noise (chassis ground and signal ground are two separate paths to earth ground)
- This grounding method ensures excellent rejection of both EMI (electromagnetic interference) and RFI (radio frequency interference)
- Another benefit is a path of least resistance to earth ground for any unwanted signal that may happen to bleed into the signal path
- Unwanted noise can follow signal ground directly to earth ground rather than try and travel through the resistive signal path
- 5E8A circuit
- (3) 12AY7 Noval pre amp tubes
- (1) 12AX7 Noval pre amp tube
- (2) 6L6G Octal power tubes
- (2) 5U4G Octal rectifier tubes
- Hand wired circuits
- Custom finger jointed wood cabinetry
- One 12″ Celestion Neo Cream back speakers for reduced weight and high fidelity
- Leather handles
- Protective slip cover included
- Backlit Schuelke Custom logo
